PRODUCTS DETAILS

Home > Products >

Single Disc Medium Block Cutting Machine For Stone Fabrication And Construction Projects

Products

5 Axis CNC Stone Cutting Machine

Single Disc Medium Block Cutting Machine For Stone Fabrication And Construction Projects

MOQ:	1
Price:	$20000
Standard Packaging:	Plastic film
Delivery Period:	20 Days After Receipt of Deposit
Payment Method:	L/C,T/T,Western Union,MoneyGram
Supply Capacity:	20 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

DIALEAD

Certification

CE, EAC

Model Number

DLZQJ-1200/1400/1600

Name:

Block Cutting Machine

Main Motor Power:

Max Cutting Size:

3000*2000*650mm

Control System:

PLC Panasonic

Cutting Disc Diameter:

1600mm

Customization:

Available

Highlight:

Stone Fabrication Block Cutting Machine

Single Disc Block Cutting Machine

Medium Stone Block Cutting Machine

Product Description

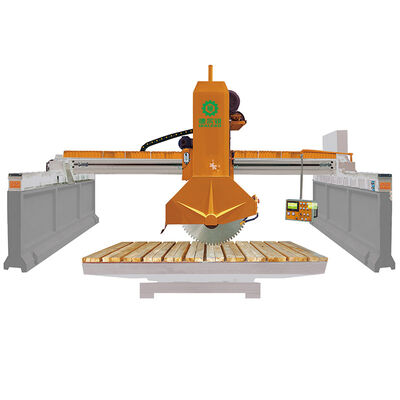

Heavy Duty Single Disc Medium Block Cutting Machine for Stone Fabrication and Construction Projects

Medium Block Cutting Machine uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to locate, and infrared device, it uses inverter to control left-right feeding. Adjusting the speed according to the stone material. It uses hydraulic lifting system. The key part adopt imported good-quality spare parts. Thus the whole machine is featured with high cutting efficiency, high stability, easy-operating to suit specially shaped stone products, tombstone and curb stone.

Technical Data

Parameters	Unit	DLZQJ-1200	DLZQJ-1400	DLZQJ-1600
Worktable rotation range	°	0°,90°	0°,90°	0°,90°
Total power	kw	27	37	37
Main motor power	kw	22	30	30
Water consumption	m³/h	4	4	4
Worktable size	mm	3000*2000	3000*2000	3000*2000
Machine width	mm	4800	4800	4800
Approximate Weight	kg	6800	6800	6800
Vertical disc diameter	mm	Φ1200	φ1400	φ1600
Max. cutting depth	mm	450	550	650

Note: All technical data can be customized to meet your specific needs.

Machine Details

Single Disc Medium Block Cutting Machine For Stone Fabrication And Construction Projects 0

Single Disc Medium Block Cutting Machine For Stone Fabrication And Construction Projects 2

Single Disc Medium Block Cutting Machine For Stone Fabrication And Construction Projects 3

Packing and Shipping

Single Disc Medium Block Cutting Machine For Stone Fabrication And Construction Projects 5

Company Profile

Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include 5 axis bridge cutting machine, four-axis bridge cutting machine,stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc. Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
